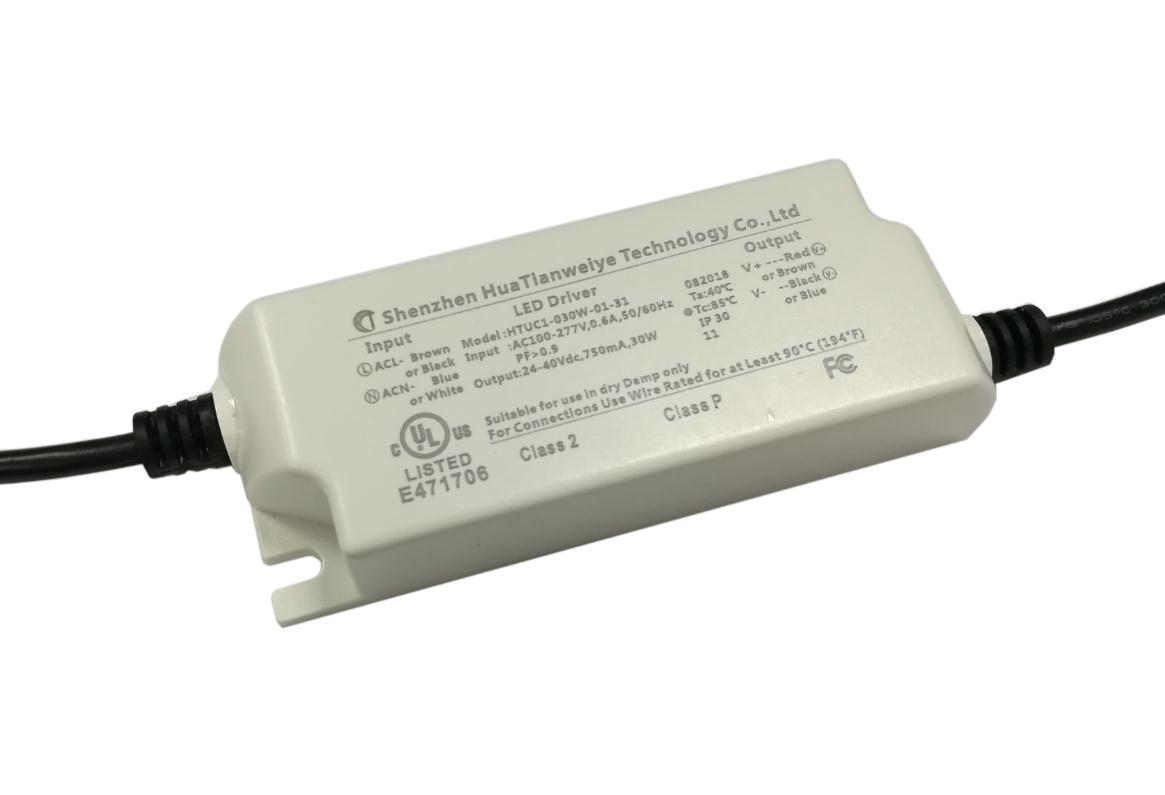

30W indoor led constant current driver UL cUL

Update: 2016/12/2      View:
  • Brand:    HT
  • Type:    HTUC1-030W-01-31
  • Order Online
Introduction


*Universal ac input/Full range

*Multiple protection function: over current, short circuit, over voltage, over temperature and No load。

*High reliable, high efficiency、 can achieve energy star (latest six levels of energy efficiency standards) 。

*Long life MTBF50000H (TC≤80) 。

*High PF value, have active PFC function,

*accord with EN61000-3-2 Class C (> 75% load)

*Class2 power 。

*Constant current design, 100% of full light load Burn-in

*Meet the UL CUL  safety standards

*Meet the EMC standard

*Flicker or Non-Flicker Optional .

*IP30 or IP65 Optional .

*Warranty : 5 years

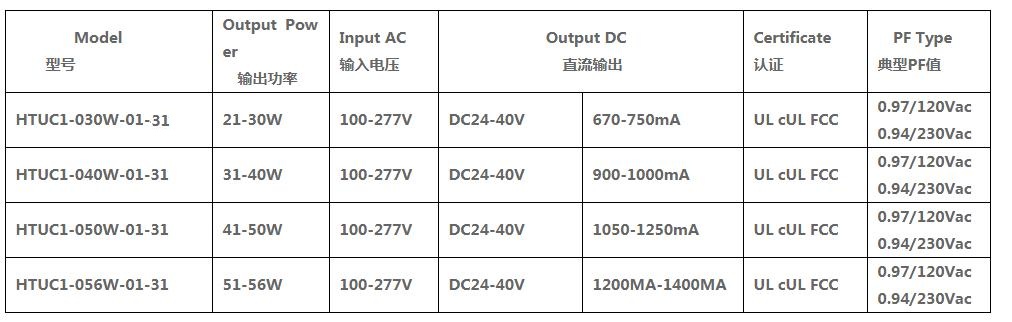

Standard


Dimension 112*42*24mm
